- Low voltage 0,6/1 (1,2) kV, Telecommunication and Signalisation
- Inside / outside underground, above ground, underwater, in cable ducts
- Cable joint type tested according to: EN 50393:2006-11
- Resin type tested according to: IEC60455-3-8:2013
- Also applicable as double branch-off joint
- Hydrolysis resistant polyurethane resin in transparent 2-component bag
- Transparent 2-piece, cylindrical shells with pre-installed sealing strips
- Excellent resistance against UV, chemicals and alkalines
- Fully waterproof
- Installation instructions and protective gloves inclusive
- Very easy and quick installation
- Connectors and/or earthing kits available on request
- Other shell size dimensions available on request

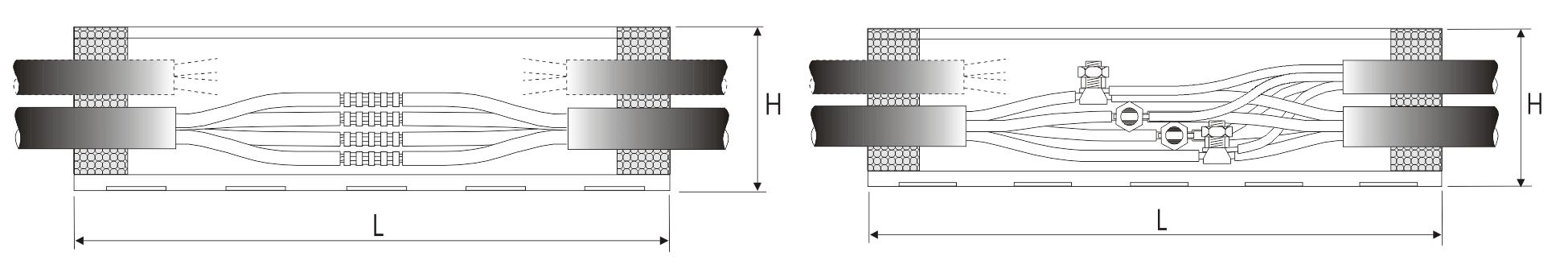

Main cable | Branch cable mm² | Afmetingen L x B x H mm | Item number |
| 4 x 1,5 – 4 x 6 | 4 x 1,5 – 4 x 4 | 175 x 43 x 75 | 8.003060 |
| 4 x 1,5 – 4 x 10 | 4 x 1,5 – 4 x 10 | 220 x 58 x 90 | 8.003061 |
| 4 x 16 – 4 x 25 | 4 x 6 – 4 x 16 | 300 x 75 x 110 | 8.003062 |
| 4 x 16 – 4 x 70 | 4 x 6 – 4 x 35 | 400 x 95 x 125 | 8.003063 |
| 4 x 70 – 4 x 150 | 4 x 16 – 4 x 50 | 500 x 112 x 140 | 8.003064 |
| 4 x 120 – 4 x 150 | 4 x 25 – 4 x 70 | 610 x 125 x 175 | 8.003065 |
| 4 x 70 – 4 x 185 | 4 x 50 – 4 x 150 | 500 x 150 x 185 | 8.003066 |
| More information |
|
|---|---|
| Home page product list | No |
