Constant force springs

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

Language

For a trouble-free connection of earth sheating or lead cable sheating.

Taped resin injections joints
In Cast resin joints
Heat-shrink joints

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The constant force spring is a resilient, rolled up spring.
Provides a constant and lasting force to the connection, thus ensuring an excellent connection even after years
Manufactured from stainless steel EN standard 1.4310

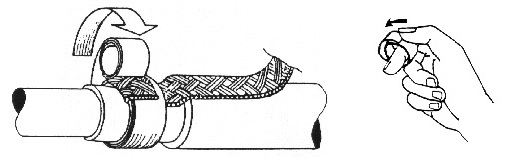

The spring can be applied by hand without any tools
Corrosion resistant
The sheating needs to be positioned under- and on top of the first turn
In a cable joint, the constant force spring is protected by selffusing insulation tape

Rolveren

Name	Art.nr.	Min. size	Max size	Inner diameter	Thickness	Length	Width
RV 08-0	80600	7,5	14,0	7,0	0,08	230	10
RV 13-1	80601	13,0	22,0	11,0	0,15	225	16
RV 18-2	80602	17,5	29,5	14,5	0,20	295	16
RV 22-3	80603	22,0	37,5	17,5	0,25	375	16
RV 27-4	80604	26,5	44,5	25,0	0,35	505	16
RV 40-5	80605	40,0	66,5	32,0	0,45	710	20
RV 65-6	80606	47,0	78,0	44,0	0,45	935	20

More Information
Home page product list	No

Products

Grouped product items
Sku	Product Name	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit	Qty
80600	Constant force spring RV Ø 7,5 / 14,0mm	Order unit 10 pcs/bag
80601	Constant force spring RV Ø 13,0 / 22,0mm	Order unit 10 pcs/bag
80602	Constant force spring RV Ø 17,5 / 29,5mm	Order unit 10 pcs/bag
80603	Constant force spring RV Ø 22,0 / 37,5mm	Order unit 10 pcs/bag
80604	Constant force spring RV Ø 26,5 / 44,5mm	Order unit 10 pcs/bag
80605	Constant force spring RV Ø 40,0 / 66,5mm	Order unit 10 pcs/bag
80606	Constant force spring RV Ø 47,0 / 78,0mm	Order unit 10 pcs/bag
