Heat-shrink break-out caps

Go Back

Account
Settings
  • Cables 0,6/1 (1,2) kV
  • Indoor / Outdoor underground, above ground, under water, in cable ducts
Download product sheet
Loading...
  • Hot melt coating inside
  • Polyolefine crosslinked
  • Fast recovery
  • Shrink temperature 70°C till 100°C
  • Continuous temperature range from -40°C till +110°C
  • Good resistance against UV and chemicals
  • Corrosion resistant
  • Cadnium free and halogen free
  • Colour: black

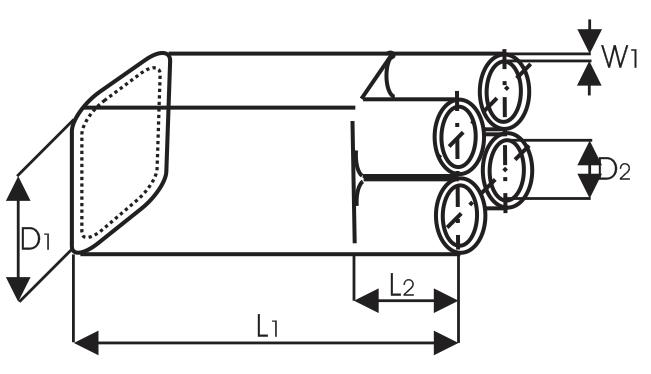

krimpkappen

Properties

Value

Standard

Physical

Tensile Strength12 N/mm² (MPA)(min)
ASTM D638
Ultimate Elongation350% (Min.)
ASTM D638
Density1.05 ± 0.2 gm/cm³
ASTM D792
Hardness45 ± 10 Shore D
ASTM D2240
Water Absorption
0.2% (max.)
ASTM D570
Thermal


Accelerated Ageing120°C for 500 Hrs
ASTM D2671
Tensile Strength
11 N/mm² (Mpa)(min.)ASTM D638
Ultimate Elongation
300% (Min.)ASTM D638
Low temperature Flexibility (-40°C for 4 Hrs.)
No CrackingASTM D2671
Heat Shock (250°C for 30 Hrs.)No Cracking or flowing
ESI 09-11
Shrink Temperature125°C
IEC 216
Continuous Temperature limit-40°C to +110°C
IEC 216
Electrical
Dielectric Strength
12 KV/mm. (Min.)ASTM D149
Volume Resistivity1 x 10¹⁴ Ohm.cm(min.)ASTM D257
Dielectric Constant5 (Max.)ASTM D150
More Information
Home page product list No
Products
Grouped product items
Sku Product Name D1 / D1* mm D2 / D2* mm L1 / L1* mm L2 / L2* mm

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

 Order unit 		Qty
8.800200 Break-out cap 2-way, 2 x 1,5-25mm² 28/8 12/3 70/85 15/20 Order unit 1 pcs/bag
8.800210 Break-out cap 2-way, 2 x 25-120mm² 60/20 24/7 95/120 25/34 Order unit 3 pcs/bag
8.800215 Break-out cap 2-way, 2 x 95-185mm² 70/22 30/8 95/120 25/34 Order unit 3 pcs./bag
8.800301 Break-out cap 3-way, 3 x 6-35mm² 37/14 15/4 80/100 15/21 Order unit 15 pcs/bag
8.800310 Break-out cap 3-way, 3 x 35-120mm² 60/20 25/8 160/188 45/62 Order unit 3 pcs/bag
8.800311 Break-out cap 3-way, 3 x 95-150mm² 80/30 36/13 185/215 60/75 Order unit 2 pcs/bag
8.800330 Break-out cap 3-way, 3 x 120-300mm² 110/45 55/20 200/235 70/88 Order unit 2 pcs/bag
8.800400 Break-out cap 4-way, 4 x 2,5-10mm² 40/12 12/3 80/100 15/25 Order unit 1 pcs/bag
8.800410 Break-out cap 4-way, 4 x 6-35mm² 41/16 14/4 80/100 15/23 Order unit 12 pcs/bag
8.800416 Break-out cap 4-way, 4 x 4-25mm² 50/16 16/4 75/95 15/23 Order unit 10 pcs/bag
8.800420 Break-out cap 4-way, 4 x 16-70mm² 58/26 21/7 140/170 32/48 Order unit 10 pcs/bag
8.800430 Break-out cap 4-way, 4 x 50-150mm² 70/25 25/8 160/190 35/51 Order unit 5 pcs/bag
8.800435 Break-out cap 4-way, 4 x 25-150mm² 70/30 25/9 155/190 35/48 Order unit 5 pcs/bag
8.800440 Break-out cap 4-way, 4 x 95-240mm² 90/42 35/13 170/210 40/52 Order unit 5 pcs/bag
8.800450 Break-out cap 4-way, 4 x 150-300mm² 125/44 40/14 175/208 40/51 Order unit 2 pcs/bag
8.800510 Break-out cap 5-way, 5 x 10-35mm² 50/16 12/4 85/110 22/33 Order unit 5 pcs/bag
8.800520 Break-out cap 5-way, 5 x 25-70mm² 57/17 15/4 75/110 23/33 Order unit 1 pcs/bag
8.800640 Break-out cap 6-way, 6 x 16-95mm² 85/37 23/7 110/130 30/46 Order unit 2 pcs/bag
8.800742 Break-out cap 7-way, 7 x 16-95mm² 95/37 23/7 110/130 30/46 Order unit 2 pcs/bag
