Injection Pump GN-E5

The new Filoform injection pumps GN-E5 are used to pump the resin under pressure (±2 Bar) into injection joints. The injection pump has a continuously variable piston displacement enabling an optimal flow of the resin into the joint.

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

**New model type GN-E5**

Suitable for resin packages type B and C
Self-centering piston. Avoids piston seizure
Fold-out handle for piston rod retraction
Cylinder and cover with a PTFE coating thus avoiding adhesion of the resin
Ergonomic hand grip
6 month warranty

More info

More Information

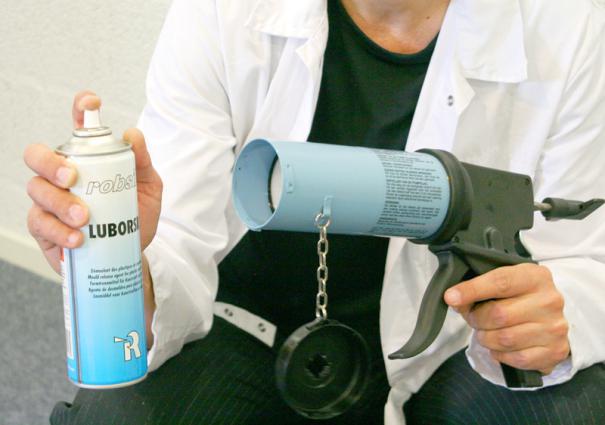

More information	Recommended use In order to achieve a proper filling of the cable joint, allow the resin to flow into the injection joint with each pumping stroke. For a long pump life, clean the piston and the interior of the cylinder once a week and apply Luborsil silicone lubricant (Filoform art.nr. 80800) Download: Injection pump instructions
Home page product list	No

Products

Grouped product items
Sku	Product Name	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit	Qty
80397	Injection gun GN-E5 with ball bearing mechanism	Order unit per piece
80801	Silicon spray 400ml	Order unit per piece
