Suitable for making a safe connection of live cables without stripping the insulation from the conductor. The connector is completely safe to touch during the installation.
- The connector can be installed without stripping the conductors
- Man independent assembly thanks to the plastic shear bolt.
- The insulated connector is safe in use.
Suitable for making a safe connection of live cables without stripping the insulation from the conductor. The connector is completely safe to touch during the installation.
- The connector can be installed without stripping the conductors
- Man independent assembly thanks to the plastic shear bolt.
- The insulated connector is safe in use.
Connectors for LV underground connection:
• Fittings for aluminium or copper cables, round or sectoral, stranded class 2 or solid
class 1.
• Tightening fuse screws with a standard manual socket or an impact wrench.
• The breakage of the fuse heads always remains in the volume of the coupling
(without ever exceeding 2 mm), and avoids the risk of damaging the insulation.

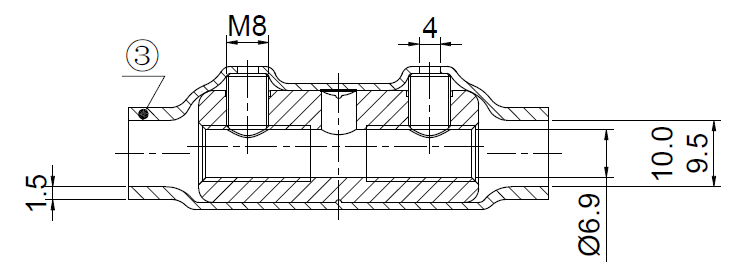

Description:
• Tinned aluminum alloy body and aluminum alloy screws.
• Shear head screw for F versions. For other versions, hexagon socket head
screws.
• The UB versions are without a central blocking part and with a viewing hole.
• Small size, particularly suitable for heat-shrink and cold-shrink joints.
