Sealing plugs

Filoform sealing plugs have been developed to provide an effective and simple solution to all splash water and dirt tight sealing requirements in HDPE ducts, protective sleeves and diamond-drilled ducts.

The sealing plugs are standard dirt and splash watertight. After mounting with sealing compound Filoform Fill & Seal (art.nr. 80840) the Filoform sealing plugs easily exceed a gas- and watertight sealing of 0.2 bar.

The Filoform sealing plugs are made from a high quality TPE, this material has a hardness of 40 Shore A.

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Formed from one part
Easy to install
Durable sealing
made from high quality TPE

Image	Item number	Duct	Recesses
	822252	25/20mm HDPE duct	3,5-4,5mm + 7mm
	43200	25/20mm HDPE duct	7mm (coax 9/12)

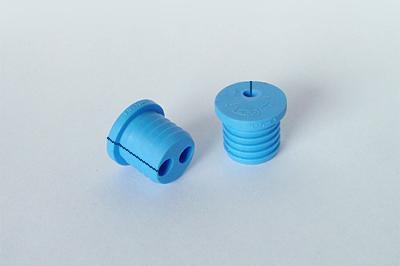

	822620	25/20mm HDPE duct	7mm (coax 9/12) with slit

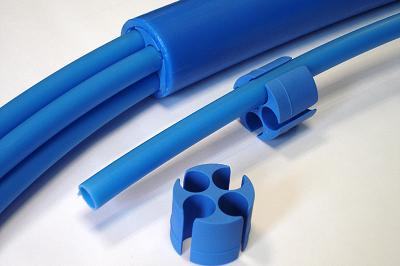

	822614	40mm HDPE duct	4x12mm

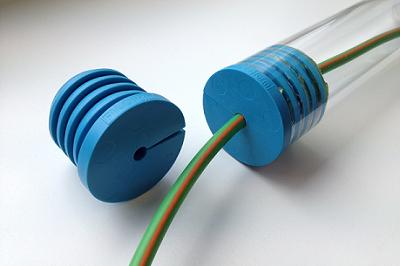

	822503	50/43,6mm PVC duct	7mm (coax 9/12) with slit
	822504	50/43,6mm PVC duct	10,5mm (coax 6) with slit
	822502	50/43,6mm PVC duct	14mm with slit

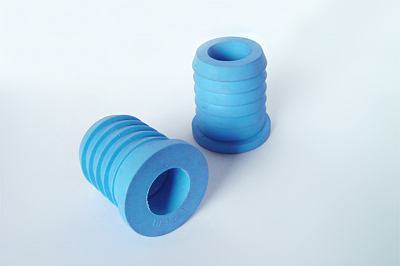

	822501	50/43,6mm PVC duct	25mm
	822501D	50/43,6mm PVC duct	25mm with slit

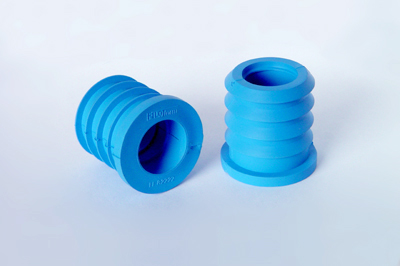

	82222	58/50mm duct	32mm

Specifications

Material : TPE
Hardness : 40 Shore A

More info

More Information
Home page product list	No

Products

Grouped product items
Sku	Product Name	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit
43200	Plug 25/20mm - 7mm	Order unit 300 pcs/carton
822620	Plug 25/20mm - 7mm with slit	Order unit 300 pcs/carton
43202	Plug 25/20mm - 10,5mm	Order unit 300 pcs/carton
822614	Plug 40/33mm - 4x12mm	Order unit On request
822503	Plug 50/43,6mm - 7mm	Order unit 50 pcs/carton
822504	Plug 50/43,6mm - 10,5mm	Order unit 50 pcs/carton
822502	Plug 50/43,6mm - 14mm	Order unit 50 pcs/carton
822501	Plug 50/43,6mm - 25mm	Order unit 25 pcs/carton
822501D	Plug 50/43,6mm-25mm Divisible	Order unit 25 pcs/carton
82222	Plug 58/50mm - 32mm	Order unit 15 pcs/carton
