Shear off screw connectors

The principle of technology are shear off head screws enabling universal and fast application. The special feature is possibility of applying one connector for conductors of different structure and wide cross section range.

up to 1 kV
Material: aluminum / tinned

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Connector Body:
- high-strength aluminum alloy
- with inspection hole
- tin-plated

Bolts:
- high-strength aluminum alloy
- uncoated
- with shear-off-head-bolts

Electrical test:
- tested acc. to VDE 0220, IEC 61238-1

Specifications

Nexans

More info

More Information
More information	Download TDS in PDF
Home page product list	No

Products

Grouped product items

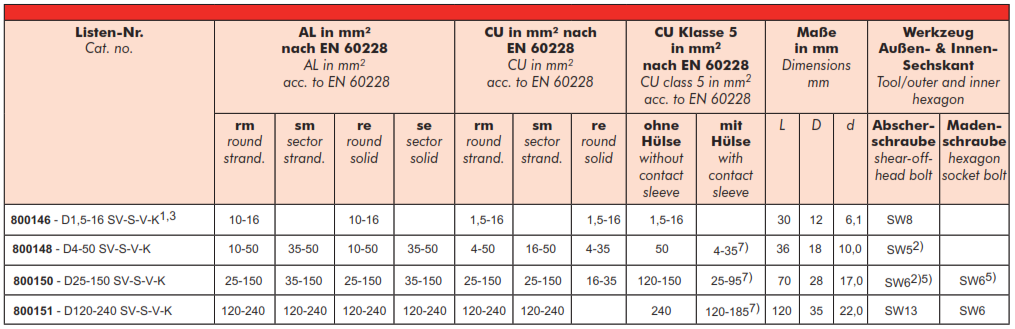

Sku	Product Name	Core min. (mm)	Core max. (mm²)	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit
800146	Shear off screw connector D1,5-16 SV-S-V-K	1,5	16	Order unit per piece
800148	Shear off screw connector D4-50 SV-S-V-K	4	50	Order unit per piece
800150	Shear off screw connector D25-150 SV-S-V-K	25	150	Order unit per piece
800151	Shear off screw connector D120-240 SV-S-V-K	120	240	Order unit per piece
