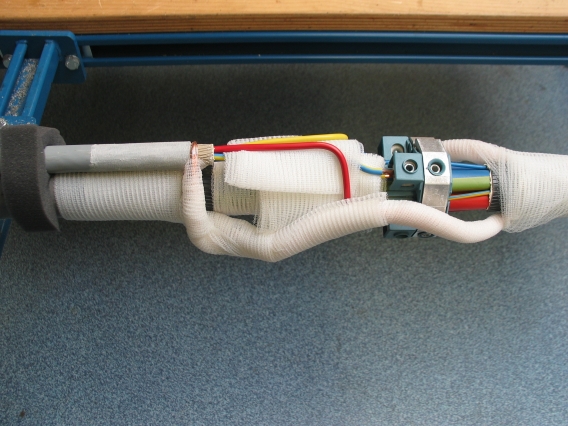

Filoform Taped resin injection joint

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

Language

Universal application; the injection joints can be adjusted to any situation "on the spot", also for cable repairs. Connection-, branch-off joints and cable end joints can be made with just a limited number of basic components.

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

	Suitable for every connection Only 6 basic components can make every type/size of joint Optimum flexibility, independent of size and type of connector Universally applicable, the Taped resin injection joint can be adapted to any situation, including repairs to damaged cable oversheets Suitable for complicated cable connections and cables running horizontally or bended
	Quick and easy to assemble The wrapping gauze is used to create sufficient insulation distance between the conducting parts within the injection joint Installation is just as quick as a cast resin joint, but with less preparation and you can close the ground right away Resin can be applied on live cables, It is not necessary to wait for the resin to cure. The resin is injected under pressure with the use of the injection pump
	Significant reduction of power failure As the resin is filled "under pressure", possible air will be driven out of the cable connection, thus allowing no spots where water or moisture can enter into the joint on the longer term Totally resistant against moisture, even when applied on wet cables. Clear visibility of filling process The strong mesh, in combination with the resin ensures a good mechanical protection over the entire length of the joint
	Environment and quality Environmental friendly and economical; the compact dimensions of injection joints ensure a minimal use of resin and materials Filoform produces and supplies all components in accordance with international standards and with the ISO 9001-2008 quality standard The Filoform injection joints are approved in accordance with the standard DIN EN 50393 (VDE 0278-393):2006-11. Total moisture resistance (HD 631-1), even when mounted on wet cables
	Cost saving and logistic advantages Low stock values Saving of space in your warehouse and in your service vans Always the correct materials available for all types of cable joints Minimal use of resin thanks to the compact dimensions

More Information
Training	Filoform is known for providing training and providing clear and straightforward assembly instructions. Download: Mixing instruction resin packs Download: Assembly instructions Taped resin injection joint On-site training During the training the following topics will be covered during the course: Contributing to a reliable cable network Taped resin injection joint Video Assembly instructions Demonstration Questions Contact Please contact us for an appointment. T: +31 (0)345 58 82 20
Calculator	Calculator
Home page product list	No

Click here to download the video

Products

Grouped product items
Sku	Product Name	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit	Qty
804606	Filofill P2600 184ml	Order unit 10 pcs/carton
804610	Filofill P2600 355ml	Order unit 10 pcs/carton
80136	Kabeline 1611 B-pack	Order unit 10 pcs/carton
80137	Kabeline 1611 C-pack	Order unit 10 pcs/carton
80477	Yellow gauze 38mm x 9m	Order unit 100 pcs/carton
80482	Wikkelgauze flex 10cm x 3,5m	Order unit 100 pcs/carton
80381	Injection nipple 6,1mm	Order unit 10 pcs/bag
80535	Injection valve 6,1mm	Order unit 10 pcs/bag
80370	Injection nipple 12,2mm	Order unit 50 pcs/carton
80467A	Wrap-around tape 38mm x 20m transparent	Order unit 64 pcs/carton
80469A	Wrap-around tape 50mm x 10m transparent	Order unit 80 pcs/carton
80530	Branch-off seal universal	Order unit 150 pcs/carton
80533	Separator strip 220x80mm	Order unit 100 pcs/carton
80534	Core separator 22x8cm	Order unit 100 pcs/carton
80532	Core separator 22x16cm	Order unit 50 pcs/carton
80397	Injection gun GN-E5 with ball bearing mechanism	Order unit per piece
