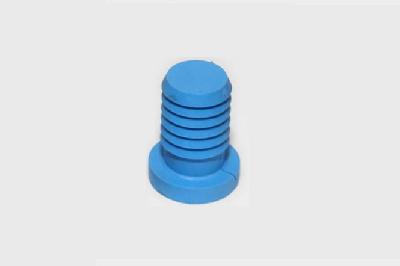

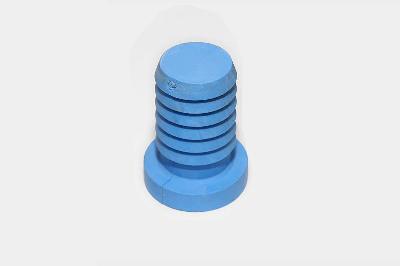

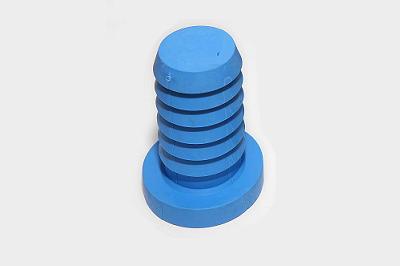

Universal HDPE sealing plugs

Filoform sealing plugs have been developed to provide an effective and simple solution to all splash water and dirttight sealing requirements in HDPE ducts, protective sleeves and diamond-drilled ducts.

The sealing plugs are formed from one part, with a seam part. Due to this unique construction, the plug can be usedas blind and sealing plug.

Furthermore, the sealing plug is inside specially shaped. This special shape enables you to adapt the plug easily tothe diameter of the cable or subduct. This enables you to obtain savings in inventory costs since only a very limitednumber of types of plugs are needed.

The Filoform sealing plug is directly applicable in situations where a blind plug temporarily without cable or subductinside the HDPE duct should be sealed or to seal openings for future transit extensions are provided.

To apply the sealing plug, the plug can be adjusted to the correct cable or subduct diameter by shortening the plugusing the size chart on the packaging.

The sealing plugs are standard dirt and splash watertight. After mounting with sealing compound Filoform Fill & Seal (art.nr. 80840) the Filoform sealing plugs easily exceed a gas- and watertight sealing of 0.2 bar.

The Filoform sealing plugs are made from a high quality TPE, this material has a hardness of 40 Shore A.
