Y Branch-off joint

JavaScript seems to be disabled in your browser. For the best experience on our site, be sure to turn on Javascript in your browser.

Language

Low voltage 0,6/1 (1,2) kV, Telecommunication and Signalisation
Inside / outside underground, above ground, underwater, in cable ducts

Download product sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Cable joint type tested according to: EN 50393:2006-11
Resin type tested according to: IEC60455-3-8:2013
Hydrolysis resistant polyurethane resin in transparent 2-component bag
Strong transparent plastic shells
Excellent resistance against UV, chemicals and alkalines
Fully waterproof
Installation instructions and protective gloves inclusive
Very easy and quick installation
Connectors and/or earthing kits available on request
Other shell size dimensions available on request

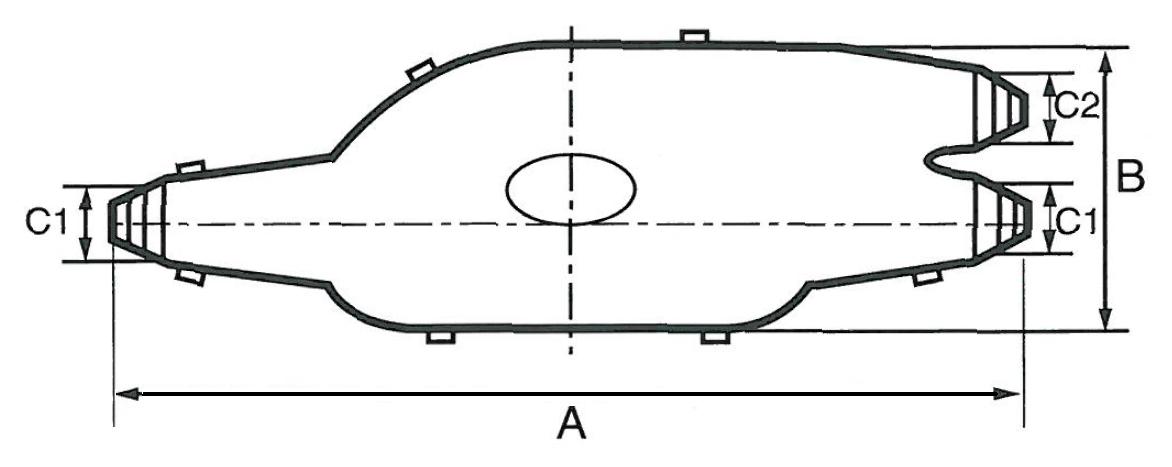

CB0

A = 190mm
B = 60mm

C1 =
min. 10mm
max. 20mm

C2 =
min. 10mm
max. 20mm

More Information
More information	Download: Mixing instructions
Home page product list	No

Products

Grouped product items
Sku	Product Name	Cable diameter (mm)	Dimensions (mm)	Enter the quantities you want to order / request. Keep the quantities equal to the Order unit Order unit	Qty
80169	Y Branch-off joint 4 x 2,5mm²	Ø 10 - 20	190 x 60 x 47	Order unit per piece
801692	Y Branch-off joint 4 x 6mm²	Ø 12 - 24	220 x 76 x 77	Order unit per piece
801694	Y Branch-off joint 4 x 16mm²	Ø 09 - 25	335 x 120 x 89	Order unit per piece
801696	Y Branch-off joint 4 x 35mm²	Ø 08 - 30	420 x 135 x 112	Order unit per piece
